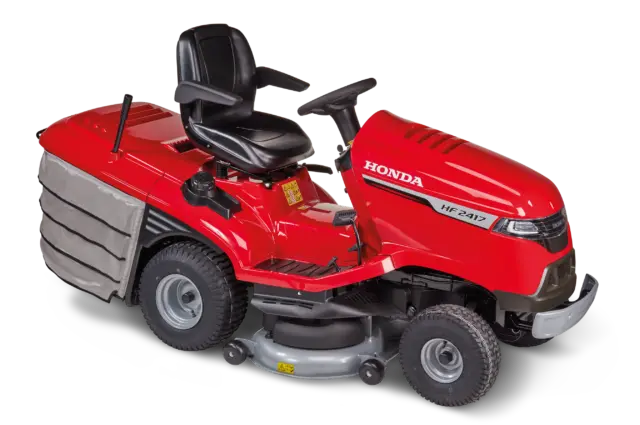

Honda Ride On HF2417HME
Function
| Blade brake clutch | Electromagnetic |
| Optiflow | Yes |
| Grass bag dumping | Manual |
| Positions and cutting | 7 |
| Noise value - sound power level (dB(A)) | 100 |
| Mulching | Versamow™ selective mulching |
| Rear deflector | Optional |
| Tow hitch | Optional |
Dimensions
| Length (mm) | 2445 |
| Width (mm) | 1060 |
| Height (mm) | 1230 |
| Dry weight (kg) | 239 |
Cutting
| Cutter deck size (cm) | 102 |
| Number of blades | 2 |
| Synchro or Asynchro | Synchro |
| height adjustment (mm) | 29-90 |
| Grass bag capacity (Litres) | 300 |
Engine
| Engine | 4-stroke OHC V-twin |
| Engine displacement (cc) | 530 |
| Engine model | GCV530 |
| Engine Rated Power (kW/rpm) | 9.4/2,800 |
| Fuel tank capacity (Litres) | 8.5 |
| Engine oil capacity (Litres) | 1.3 |
| Transmission type | Variable: Hydrostatic |
| Driving speed (km/h) | Progressive 0 to 8.2 |
Tyres
| Front tyres (diameter x width - rim) (inches) | 15 x 6.00 - 6 |
| Rear tyres (diameter x width - rim) (inches) | 18 x 8.50 - 8 |
| Turning radius (m) | 1.8 |
